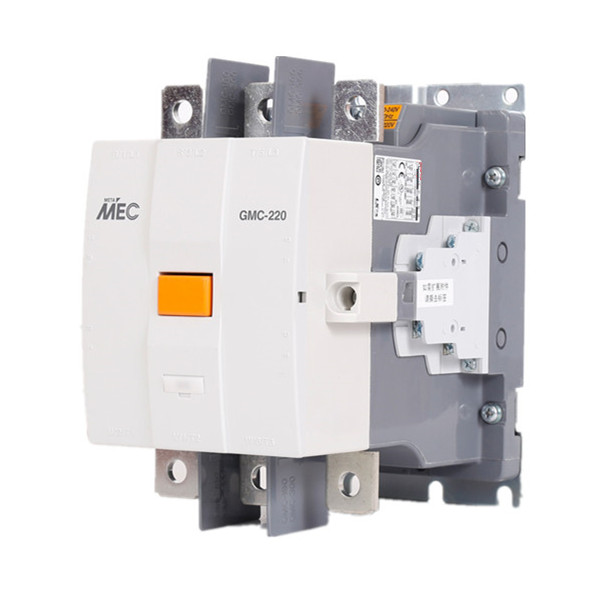

Contactor — GMC Series Contactor 2
Application
GMC (LS) series AC contactor is suitable for using in the circuits up to the rated voltage 660VAC 50Hz or 60Hz, rated current 9A to 135A, making and breaking and frequent starting, controls the AC motor. Combined with the auxiliary contact group, air delayer, machine interlocking device etc, it is combined into the delay contactor, mechanical interlocking contactor, drat-delta starter, with the thermal relay, it is combined into the electro magnetic starter. This product conforms to the requirement of IEC 60947 -1 & GB14048.4 standards.
Specification
Type | GMC-50 | GMC-65 | GMC-75 | GMC-85 | GMC-100 | GMC-125 | |||
IEC-60947 | AC1 duty | 80A | 100A | 110A | 135A | 150A | 150A | ||
AC-3 duty | 220-240V | 15KW 55A | 18.5KW 65A | 22KW 75A | 25KW 85A | 30KW 105A | 35KW 125A | ||
380-440V | 22KW 50A | 30KW 65A | 37KW 75A | 45KW 85A | 55KW 105A | 60KW 120A | |||
500-550V | 30KW 43A | 37KW 60A | 45KW 64A | 45KW 75A | 55KW 85A | 60KW 90A | |||
690V | 30KW 33A | 37KW 47A | 45KW 47A | 45KW 52A | 55KW 65A | 60KW 70A | |||
UL | Continuous current(th) | 70A | 80A | 90A | 100A | 160A | 160A | ||
AC Motor | Single Phase | 115V | 3HP | 5HP | 5HP | 7.5HP | 7.5HP | 10HP | |
230V | 7.5HP | 10HP | 15HP | 15HP | 15HP | 20HP | |||
Three Phase | 200V | 10HP | 15HP | 20HP | 25HP | 30HP | 40HP | ||
230V | 15HP | 20HP | 25HP | 30HP | 30HP | 40HP | |||
460V | 30HP | 40HP | 50HP | 50HP | 60HP | 75HP | |||
575V | 30HP | 40HP | 50HP | 50HP | 60HP | 75HP | |||
Aux. Contact | Side mounting | AU-1 | AU-1 | AU-1 | AU-1 | AU-1 | AU-100 | AU-100 | |
Top mounting | AU-2,AU-4 | AU-2,AU-4 | AU-2,AU-4 | AU-2,AU-4 | AU-2,AU-4 | ||||
Panel installation | Rail & Screw | ||||||||
External Dimension(mm)(W*H*D) | 94x123.5x117.4 | 100x157.4x146.5 | |||||||
NORMALAUNNING AND INSTALLATION CONDITIONS
•Ambient air temperature:-5℃~+40℃, the average value should not exceed+35℃ within 24 hours.
•Elevation:at most 2000m.
•Atmospheric conditions:When the temperature at 40, the relative humidity of atomsphere should be at the most 50%. When at relatively low temperatures, it could have higher relative humidity. Monthly maximum relative humidity could be not more than 90% . Special measures should be taken due to occurrence of dews.
•Class of pollution:Class 3
•Installation category: III
•Installation conditions:Degree of inclination between fitting surface and vertical surface should not exceed I
•Impact shock:Product should be installed and used in the place where often shakes and impacts.
