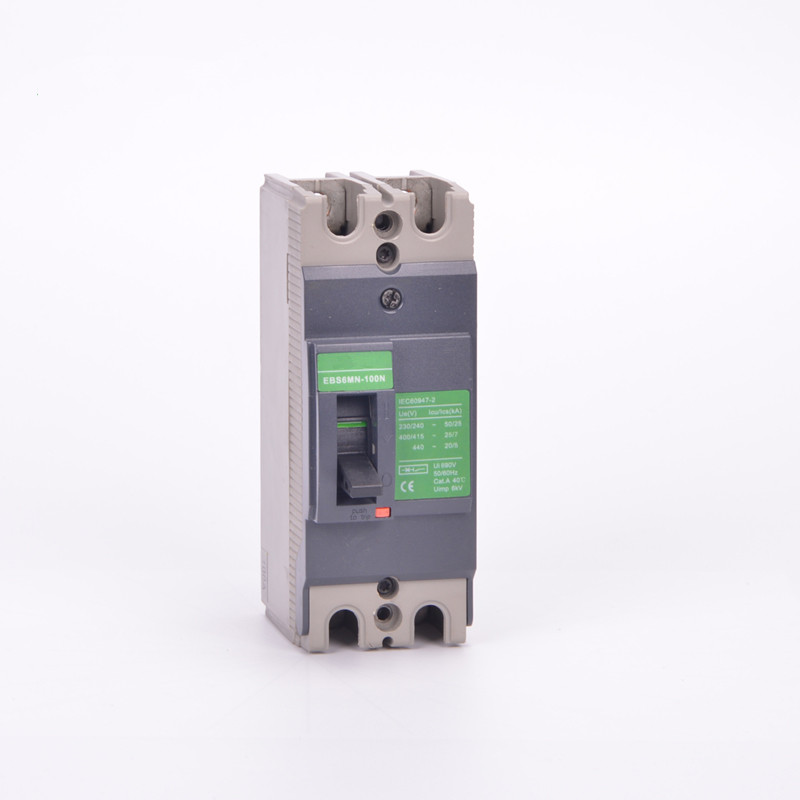

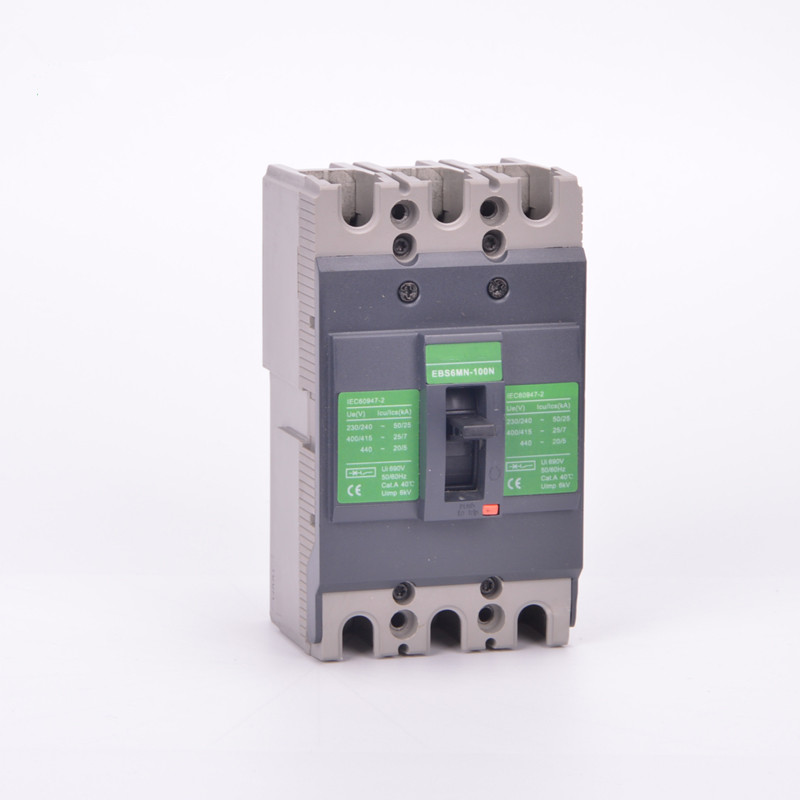

Mould Case Circuit Breakers — EZD Series MCCB

Back

Detailed description

Description:

EZD series moulded case circuit breaker is our main moulded case circuit breaker,the whole series passed CE authorization.

The EZD series plastic outer covering type circuit breaker is suitable in exchanges 50/60Hz,the fixed working voltage is highest to 550V,nominal current in the 15-630A low pressure electrical power distribution system uses in protecting the distribution line and the current collector,exempts is overloaded,the short circuit and the earth fault harm,provides the power supply the continuity and the reliability.

Specification:

Item No.	EZD	100	160-250	400	630
Number of poles		1P,2P,3P,4P
Control	Manual	with toggle/with direct or extened rotary handle
Connections	Fixed	front connection
	Plug-in	front connection/rear connections
Rated current(A)	In(at 40℃)	15,20,30,40,	100,125,160,200,250	250-400	400-630
		50,60,75,80,100
Rated insulation voltage(V)	Ui	690
Rated impulse	Uimp	6
Rated operational voltage(V)	Ue	AC50/60Hz, 440V
Utilization category		F H
Operation performance	Mechanical	10000	8500	8000	6000
	Electrical	2000	1500	1000	1000
