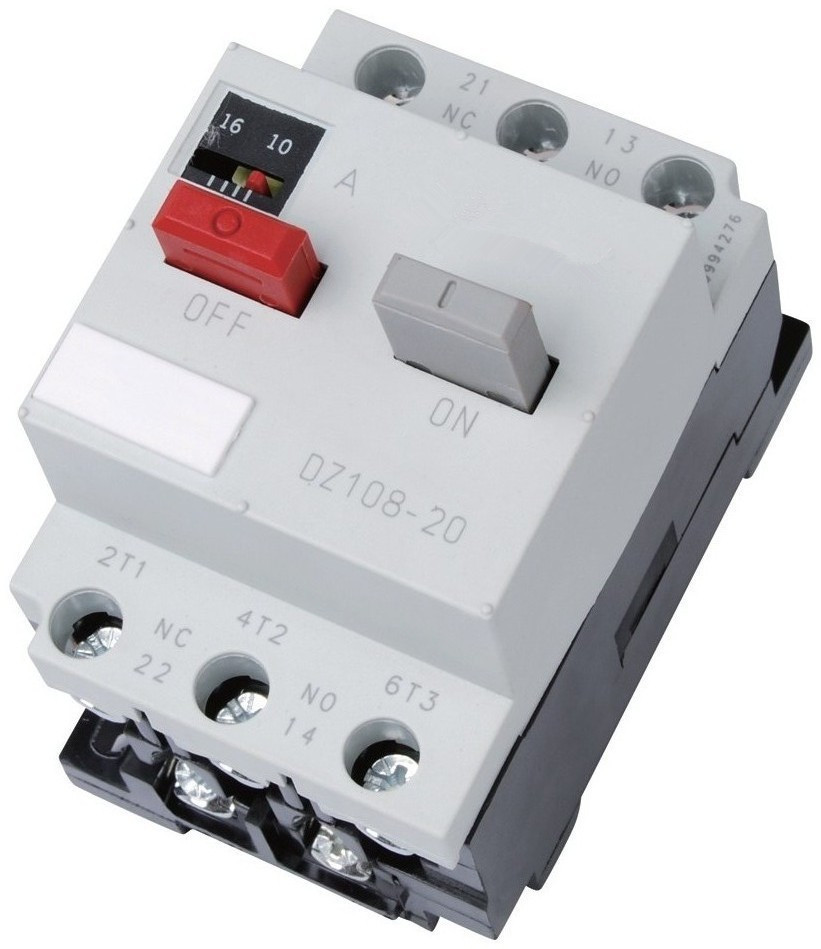

Motor Drive Protection — DZ108 Series Motor Starter

Back

Detailed description

DZ108 is suitable in AC circuit of 50/60Hz , voltage up to 660V and current up to 0.1-63A and used toprevent small capacity motor and circuit from overload and short circuit and also used as direct starter forstarting the motor and a switch for changeover the circuit under normal conditions.

Specification

Type		DZ108-1	DZ108-3	DZ108-4
Poles		3	3	3
Rated current A		20	32	63
Rated voltage V		660	660	660
Rated insulation voltage V		660	750	750
Current setting voltage V		0.1 - 0.16 0.16- 0.25 0.25-0.4 0.4- 0.63 0.63-1 1-1.6 1.6-2.5 2-3.2 2.5-4 3.2-5 4-6.3 5-8 6.3-10 8-12.5 10-16 14-20	1-1.6 1.6-2.5 2.5-4 4-6.3 6.3-10 8-12.5 10-16 12.5-20 16-25 22-32	6.3-10 10-16 16-25 22-32 28-40 36-50 45-63 45-56
Power of controlled motor KW	220V	5.5	9	18
	380V	10	16	32
	660V	13	26	58
Mechanical life (1*104)		10	10	32
Protective feature	1.2le	not act within 2hrs
	1.2le	act within 2hrs
	12le	action snap
